Victory BX-72RSH Wood Chipper Wood Shredder with Tractor independant Hydraulic System
.jpg "Victory BX-72RSH Wood Chipper Wood Shredder with Tractor independant Hydraulic System")
.jpg "Victory BX-72RSH Wood Chipper Wood Shredder with Tractor independant Hydraulic System")
.jpg "Victory BX-72RSH Wood Chipper Wood Shredder with Tractor independant Hydraulic System")
.jpg "Victory BX-72RSH Wood Chipper Wood Shredder with Tractor independant Hydraulic System")
.jpg "Victory BX-72RSH Wood Chipper Wood Shredder with Tractor independant Hydraulic System")
.jpg "Victory BX-72RSH Wood Chipper Wood Shredder with Tractor independant Hydraulic System")
.jpg "Victory BX-72RSH Wood Chipper Wood Shredder with Tractor independant Hydraulic System")
.jpg "Victory BX-72RSH Wood Chipper Wood Shredder with Tractor independant Hydraulic System")
.jpg "Victory BX-72RSH Wood Chipper Wood Shredder with Tractor independant Hydraulic System")
.jpg "Victory BX-72RSH Wood Chipper Wood Shredder with Tractor independant Hydraulic System")
.jpg "Victory BX-72RSH Wood Chipper Wood Shredder with Tractor independant Hydraulic System")
.jpg "Victory BX-72RSH Wood Chipper Wood Shredder with Tractor independant Hydraulic System")
.jpg "Victory BX-72RSH Wood Chipper Wood Shredder with Tractor independant Hydraulic System")
.jpg "Victory BX-72RSH Wood Chipper Wood Shredder with Tractor independant Hydraulic System")
BX-72RS-H professional tractor wood chipper - shredder system with tractor independant hydraulic system
PTO shaft driven wood chipper with hydraulic feeding system for professional and fast processing of wood with up to 18cm in diameter. Suitable for medium and large tractors with 50 to 100hp and Cat I / II three-point hitch.
The Victory BX-shredders comply with all safety regulations and is CE tested following the 2006/42/EC machine directive.
➤ For medium and large tractors from 50-100 HP
➤ For tractors with cat. I & II three-point hitch
➤ tractor independant built-in hydraulic system
➤ For tractors with cat. I & II three-point hitch
➤ tractor independant built-in hydraulic system
Including PTO shaft ✓
Free shipping ✓
Assembly of the Victory BX-72RSH
Application of the wood shredder:
The Victory BX-72RS-H wood chipper offers best performance at 60 to 70hp tractor engine power. Wood branches are pulled into the wood shredder using the built-in tractor independant hydraulic system, driving 2 opposed feeding rollers, which drag in the wood into the wood chipper. The Victory BX-72RS-H offers fast and easy operation. The two infeed rollers are mounted with ball bearings on each side so that both rollers are firmly guided, unable to tilt in any direction. The large safety bracket operates the hydraulic functions (IN - OUT - STOP) of the feeding rollers, so that almost all wood jams can be easily solved by the "reverse" gear. Your tractor does not need any hydraulic connectors. The included safety PTO shaft with friction clutch drives the wood chipper and the integrated hydraulic system that comes with tank, pump and all the necessary pipes.

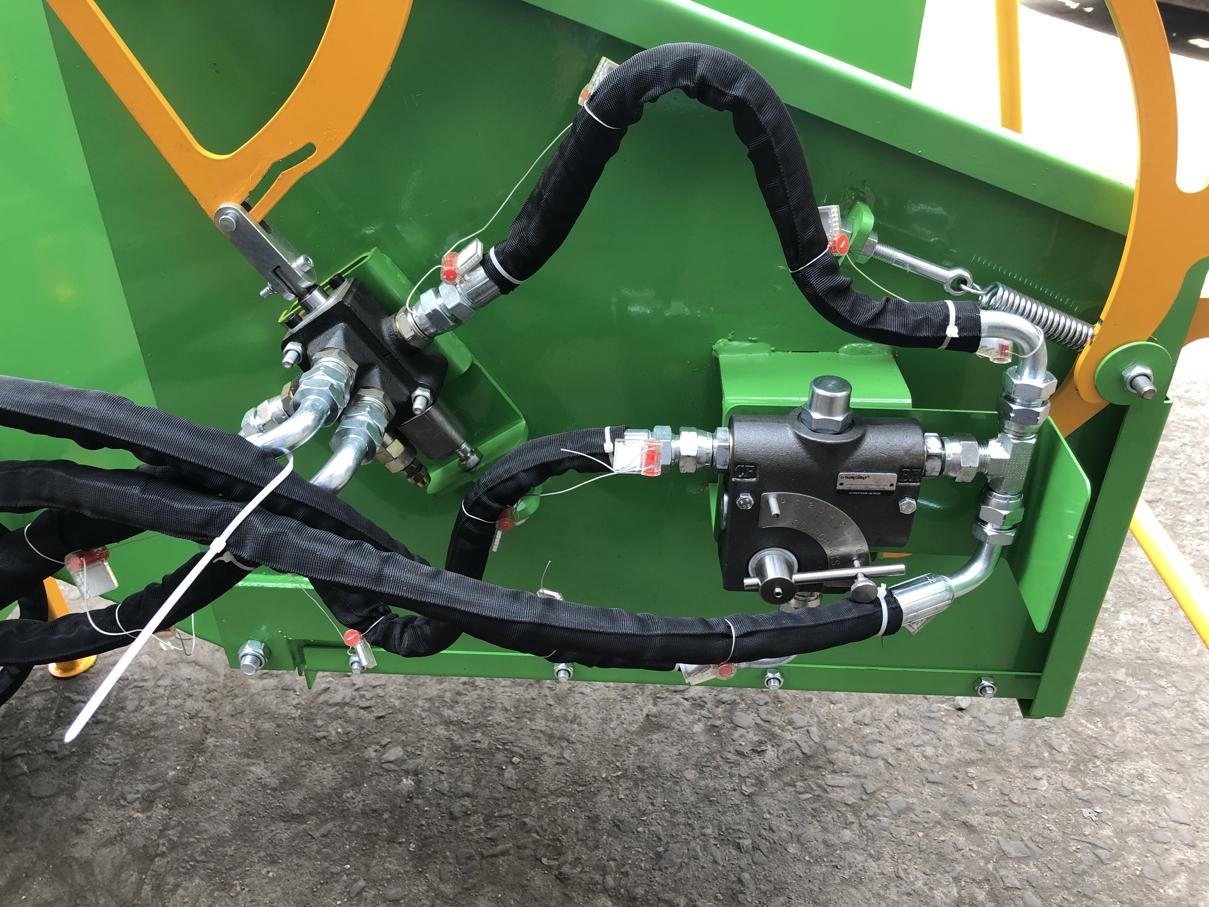

Depending on your tractor´s PTO speed the built-in hydraulic system creates up to 250bar pressure, pumping up to 12L/min hydraulic oil from the 8L tank mounted on the BX-72RS-H shredder. If you plan to use two different tractors with incompatible types of hydraulic oil, the BX72RS-H is the best solution for you.
Depending on your tractor´s PTO speed the built-in hydraulic system creates up to 250bar pressure, pumping up to 12L/min hydraulic oil from the 8L tank mounted on the BX-72RS-H shredder. If you plan to use two different tractors with incompatible types of hydraulic oil, the BX72RS-H is the best solution for you.
Technology of the wood shredder:

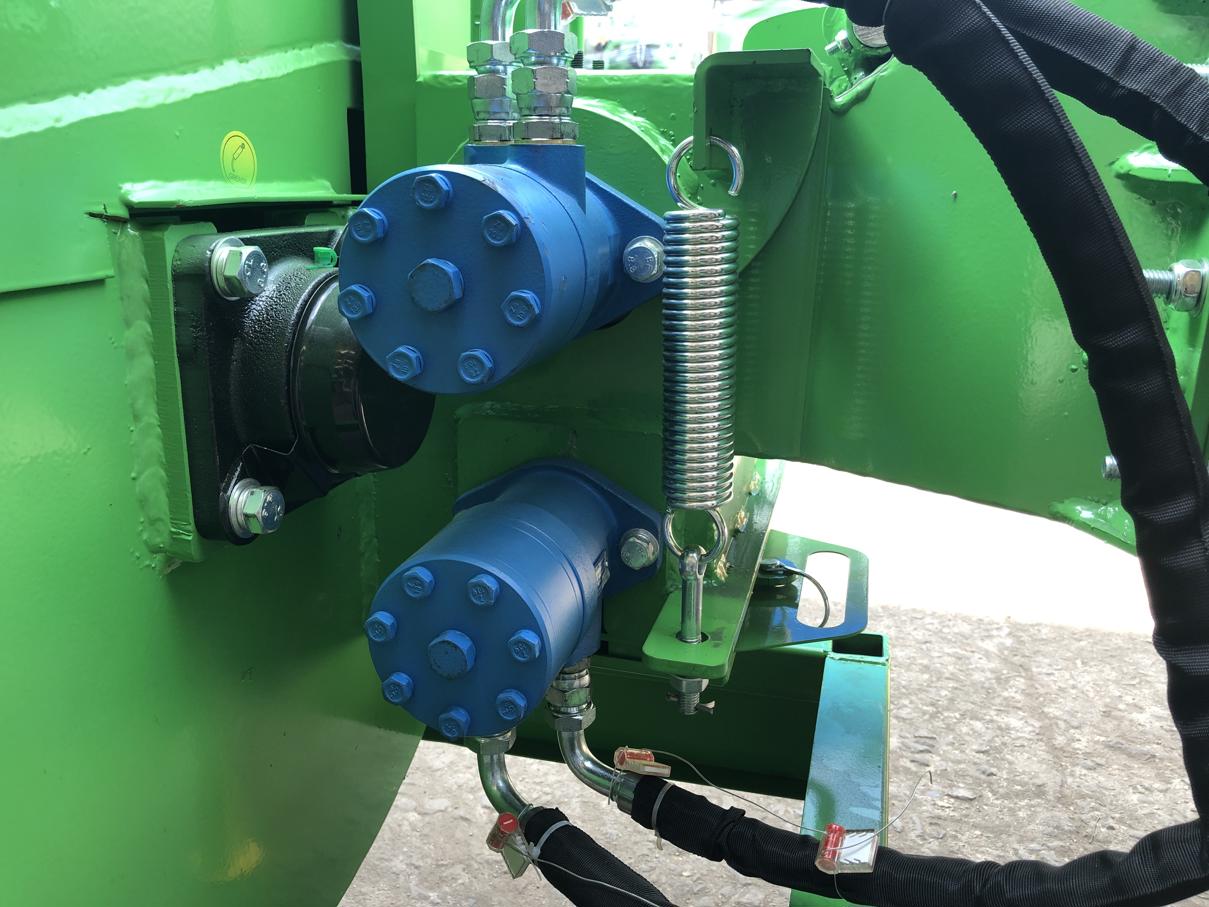

Input roller speed is steplessly adjustable for easy adjustment of the chipper performance to diameter and type of wood. Smaller diameter can be pulled in and processed faster by the Victory BX-72 wood chipper than larger or harder wood diameter.
Four 24cm long knives, made of hardened tooling steel, are mounted on a 20mm wide and 95kg heavy rotor of the BX-72RS-H wood chipper. Wood of up to 18cm diameter can be chipped into 1 to 5cm sized pieces. Additionally mounted winglets on the rotor create the necessary air flow needed to guide even difficult material through the chipper. Inside the massive rotor housing additional replaceable branch breakers are mounted to even shred small branches efficiently. The output hopper height is 230cm, can be turned by 230° and is able to throw the wood chips up to 10m far. Trailers, containers and big bags can be easily filled. An output hopper extension of 50cm from 230cm to 280cm is optionally available, so that even large truck trailers can be easily filled. The Victory BX-72RS-H has a capacity of up to 10m³/h wood chips per hour.
The newest features of the Victory BX-72RS-H wood chipper are an easy to open service door under the lower input roller, so that debris and wood parts can be easily removed and movable parts can easily be serviced. The completely redesigned BX-72RS-H wood chipper also offers a trouble free access to the feeding rollers, where now the adjustable counter knife can also be found. Just 2 bolts have to be loosened to lift the upper input roller together with its massive mounting frame and service the infeed rollers fast and efficiently. The new L-shaped counter knife improves the cutting of small branches significantly, generating a more even size of shredded material, which is usefull for wood chips heating system.
The new foldable and extremely wide 90cm input chute can be operated by the new safety bar from all sides of the machine. When processing difficult material like fir, spruce or thuja trees higher PTO rpm like 750 or 1000 are very usefull, since a much stronger air suction is generated to blow the material into the desired direction and distance.
The specially designed infeed chute of the Victroy BX-72RSH wood chipper allows a minimum distance between the feeding rollers and the rotor knives. This leeds to very small pieces of wood, which the rollers cannot control on their way to the knives, leading to very fast processing speed..
The newest features of the Victory BX-72RS-H wood chipper are an easy to open service door under the lower input roller, so that debris and wood parts can be easily removed and movable parts can easily be serviced. The completely redesigned BX-72RS-H wood chipper also offers a trouble free access to the feeding rollers, where now the adjustable counter knife can also be found. Just 2 bolts have to be loosened to lift the upper input roller together with its massive mounting frame and service the infeed rollers fast and efficiently. The new L-shaped counter knife improves the cutting of small branches significantly, generating a more even size of shredded material, which is usefull for wood chips heating system.
The new foldable and extremely wide 90cm input chute can be operated by the new safety bar from all sides of the machine. When processing difficult material like fir, spruce or thuja trees higher PTO rpm like 750 or 1000 are very usefull, since a much stronger air suction is generated to blow the material into the desired direction and distance.
The specially designed infeed chute of the Victroy BX-72RSH wood chipper allows a minimum distance between the feeding rollers and the rotor knives. This leeds to very small pieces of wood, which the rollers cannot control on their way to the knives, leading to very fast processing speed..
For transportation of the chipper, the large input chute can be easily folded up by only one person and can be secured without any tools. By removing only one bolt, you get access to the rotor and knives of the Victory BX-72 wood chipper, making maintenance jobs are matter of minutes. The heavy 95kg rotor disc creates a very strong air flow with its speciall design winglets, so that stuck material inside the chipper is virtually impossible. Since the hydraulic rollers can turn backwards instantly, blocked material in the input chute can be pulled out of the chipper within seconds.
✅ up to 1000 rpm rotor speed
✅ 4 rotor knives cut the wood up to 67 times per sec.
✅ PTO shaft with adjustable friction clutch
✅ rotor housing and feeding roller housing are easy and fast to open
✅ rotor housing and feeding roller housing are easy and fast to open
✅ foldable input chute
✅ adjustable feeding speed
✅ new L-shaped counter knife for symmetrical shredding results
✅ infeed rollers with double ball bearings
✅ tractor independant hydraulic system; tractor not need to have any hydraulic connectors
✅ BX-72RS-H is delivered partially assembled
✅ adjustable feeding speed
✅ new L-shaped counter knife for symmetrical shredding results
✅ infeed rollers with double ball bearings
✅ tractor independant hydraulic system; tractor not need to have any hydraulic connectors
✅ BX-72RS-H is delivered partially assembled
The Victory BX-72RS-H comes with a PTO shaft with friction clutch for a perfect and safe power transmission from the tractor.
We from Victory Tractor firmly believe that you will not find a better value for money heavy duty tractor wood shredder in the market. Feel free to compare our product to others in the market and we are sure you will agree.
ATTENTION
Partially assembled machines do not contain any fuel , oil or other fluids or grease needed for operation ! BEFORE USING THE MACHINE please carefully read the English user manual.

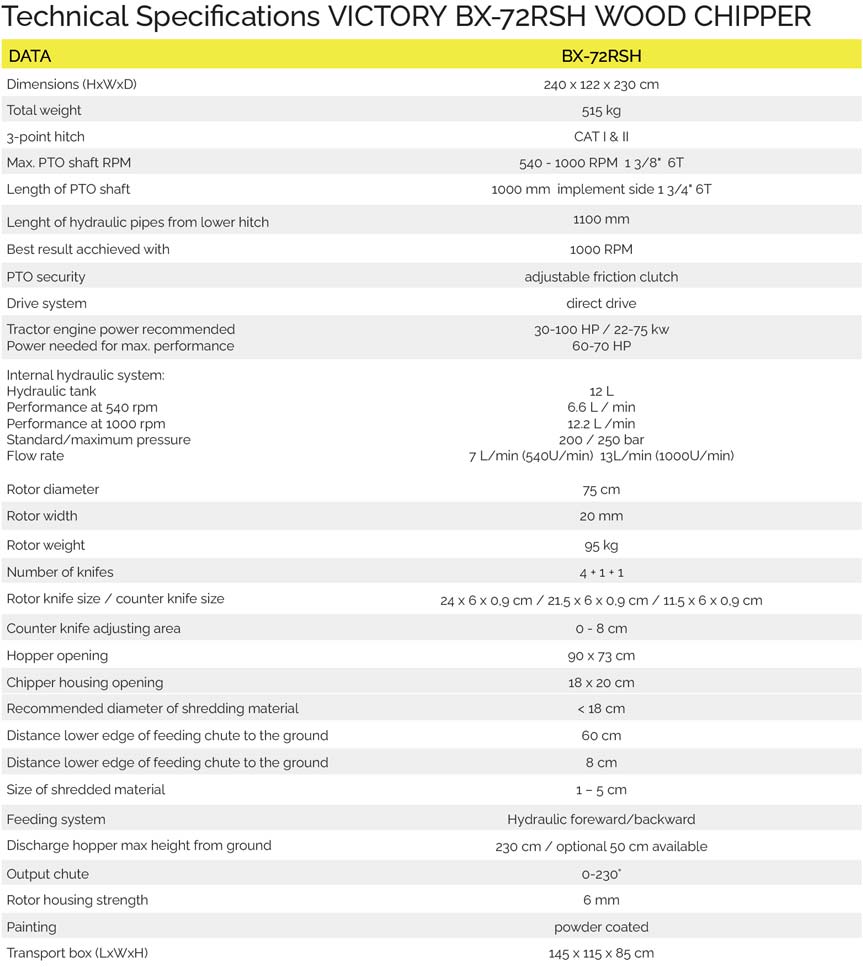

| Technical Data Victory BX-72-RSH Wood chipper with tractor independant hydraulic system | ||
| DATA | BX-72RSH | |
| dimensions in working condition (LxWxH) cm | 240x122x230 | |
|---|---|---|
| total weight incl. PTO shaft kg | 515 | |
| 3-point hitch tractor | Cat 1 +Cat 2 | |
| PTO shaft clockwise RPM | 540 - 1000 1 3/8" 6T | |
| PTO shaft length cm | 100 on chipper: 1 3/8" 6T | |
| Length of hydraulic pipes from lower hitch cm | 110 | |
| Best results at RPM | 1000 | |
| PTO shaft safety | adjustable friction clutch | |
| Drive system | direct drive | |
| Tractor engine power recommended hp / kw | 30-100 / 22-75 | |
| Required engine power for max. performance hp | 60 - 70 | |
| Internal hydraulic system Tank L Flow capacity at 540 RPM L/min Flow capacity at 1000 RPM L/min Standard / maximum pressure psi |
YES 9 6,6 12,2 2900 / 3625 |
|
| Recommended hydraulic oil | HLP-32 or HLP-46 | |
| Rotor diameter cm | 75 | |
| Rotor thickness without fans mm | 20 | |
| Rotor weight kg | 95 | |
| Number of knives | 4 + 1 +1 | |
| Rotor knife / counter knives cm | 24x6x0,9 / 21,5x6x0,9 / 11,5x6x0,9 | |
| Adjustment area counter knife mm | 0 - 8 | |
| Infeed chute largest size cm | 90 x 73 | |
| Infeed chute smallest size cm | 18 x 20 | |
| Recommended wood diameter cm | < 18 | |
| Distance from lower edge infeed chute to ground cm | 60 | |
| Distance between infeed roller and rotor knives cm | 8 | |
| Size of wood chips cm | 1 - 5 (depending on wood and settings) | |
| Wood feeding system | hydraulical fore-/backward | |
| Output chute height max. cm | 230 / optional extension by 50 | |
| Output chute adjustment | 0 - 230° | |
| Material strength rotor housing mm | 6 | |
| Painting | powder coating | |
| Transport box (LxWxH) cm | 142x115x90 | |
