Victory BX-102RSH Professional Hydraulic Wood Chipper Wood Shredder, tractor independant hydraulic system

(Product No.: V-BX-102RSH-c)

Mobile Preview: Victory BX-102RSH Professional Hydraulic Wood Chipper Wood Shredder, tractor independant hydraulic system

(Product No.: V-BX-102RSH-c)

Victory BX-102RSH Professional Hydraulic Wood Chipper Wood Shredder, tractor independant hydraulic system

Name: Victory BX-102RSH Professional Hydraulic Wood Chipper Wood Shredder, tractor independant hydraulic system
Brand: Victory
SKU: V-BX-102RSH-c
Price: 4098.00 EUR
Availability: InStock

Shipping time:

Available from stock in 18 days

SOON

4.098,00 EUR

Free shipping - all EU countries

incl. 19% tax

Description

BX-102 professional tractor wood chipper - shredder system with tractor independant hydraulic system

PTO shaft driven wood chipper for professional and fast processing of wood with up to 23cm in diameter. Suitable for medium and large tractors with 60 to 150hp and Cat II three-point hitch.

The Victory BX-shredders comply with all safety regulations and is CE tested following the 2006/42/EC machine directive.

➤ For medium and large tractors from 60HP to 150HP
➤ For tractors with cat. II three-point hitch
➤ tractor independant built-in hydraulic system

Including PTO shaft ✓
Free shipping ✓

The Victory BX-102RS-H wood chipper / shredder is a high performance chipper with tractor independant hydraulic input rollers with advanced features.

Application of the hydraulic wood chipper:

The Victory BX-102RS-H wood chipper offers best performance at 70 to 90hp tractor engine power. Wood branches are pulled into the wood shredder using the built-in tractor independant hydraulic system that is driving 2 opposed feeding rollers, which drag in the wood into the wood chipper. The Victory BX-102RS-H offers fast and easy operation. The two infeed rollers are mounted with ball bearings on each side so that both rollers are firmly guided, unable to tilt in any direction. The large safety bracket operates the hydraulic functions (IN - OUT - STOP) of the feeding rollers, so that almost all wood jams can be easily solved by the "reverse" gear. Your tractor does not need any hydraulic connectors. The included safety PTO shaft with friction clutch drives the wood chipper and the integrated hydraulic system that comes with tank, pump and all the necessary pipes.
Depending on your tractor´s PTO speed the built-in hydraulic system creates up to 250bar pressure, pumping up to 12L/min hydraulic oil from the 12L tank mounted on the BX-102RS-H shredder
.

Technology of the hydraulic wood chipper:

Input roller speed is steplessly adjustable for easy adjustment of the chipper performance to diameter and type of wood. Smaller diameter can be pulled in and processed faster by the Victory BX-102 wood chipper than larger or harder wood diameter.

Four 32cm long knives, made of hardened tooling steel, are mounted on a 30mm wide and 197kg heavy rotor of the BX-102Rs-H wood chipper. Wood of up to 23cm diameter can be chipped into 1 to 5cm sized pieces. Additionally mounted winglets on the rotor create the necessary air flow to guide even difficult material through the chipper. Inside the massive rotor housing additional replaceable branch breakers are mounted to even shred small branches efficiently. The output hopper height is 240cm, can be turned by 230° and is able to throw the wood chips up to 12m far. Trailers, containers and big bags can be easily filled. An output hopper extension of 50cm from 240cm to 290cm is optionally available, so that even large truck trailers can be easily filled. The Victory BX-102RS-H has a capacity of up to 15m³/h wood chips per hour.

The newest features of the Victory BX-102RS-H wood chipper are an easy to open service door under the lower input roller, so that debris and wood parts can be easily removed and movable parts can easily be serviced. The completely redesigned BX-102 wood chipper also offers a trouble free access to the feeding rollers, where now the adjustable counter knife can also be found. Just 2 bolts have to be loosened to lift the upper input roller together with its massive mounting frame and service the infeed rollers fast and efficiently. The new L-shaped counter knife improves the cutting of small branches significantly, generating a more even size of shredded material, which is usefull for wood chips heating system.

The new foldable and extremely wide 112cm input chute can be operated by the new safety bar from all sides of the machine. When processing difficult material like fir, spruce or thuja trees higher PTO rpm like 750 or 1000 are very usefull, since a much stronger air suction is generated to blow the material into the desired direction and distance.

The specially designed infeed chute of the Victroy BX-102RSH wood chipper allows a minimum distance between the feeding rollers and the rotor knives. This leeds to very small pieces of wood, which the rollers cannot control on their way to the knives, leading to very fast processing speed..

For transportation of the chipper, the large input chute can be easily folded up by only one person and can be secured without any tools. By removing only one bolt, you get access to the rotor and knives of the Victory BX-102RS-H wood chipper, making maintenance jobs are matter of minutes. The extremely heavy 197kg rotor disc creates a very strong air flow with its speciall design winglets, so that stuck material inside the chipper is virtually impossible. Since the hydraulic rollers can turn backwards instantly, blocked material in the input chute can be pulled out of the chipper within seconds.

✅ up to 1000 rpm rotor speed

✅ 4 rotor knives cut the wood up to 67 times per sec.

✅ PTO shaft with adjustable friction clutch
✅ rotor housing and feeding roller housing are easy and fast to open

✅ foldable input chute
✅ adjustable feeding speed
✅ new L-shaped counter knife for symmetrical shredding results
✅ infeed rollers with double ball bearings
✅ tractor independant hydraulic system; tractor not need to have any hydraulic connectors
✅ BX-102RS-H is delivered partially assembled

The Victory BX-102RSH comes with a PTO shaft with friction clutch for a perfect and safe power transmission from the tractor.

We from Victory Tractor firmly believe that you will not find a better value for money heavy duty tractor wood shredder in the market. Feel free to compare our product to others in the market and we are sure you will agree.

ATTENTION

Partially assembled machines do not contain any fuel , oil or other fluids or grease needed for operation ! BEFORE USING THE MACHINE please carefully read the mutli lingual user manual.

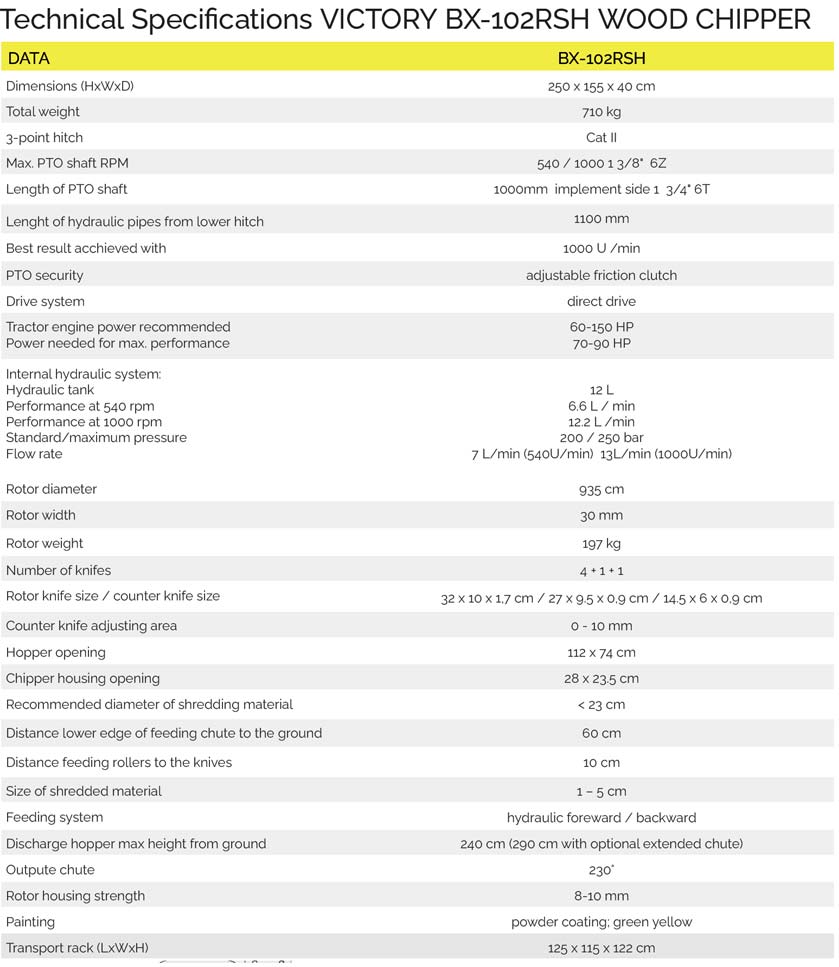

Technical Data

Technical Data Victory BX-102-RSH Wood chipper with tractor independant hydraulic system
DATA	BX-102RSH
dimensions in working condition (LxWxH) cm	250x155x240
total weight incl. PTO shaft kg	710
3-point hitch tractor	Cat 1 +Cat 2
PTO shaft clockwise RPM	540 - 1000 1 3/8" 6T
PTO shaft length cm	100 on chipper: 1 3/4" 6T
Length of hydraulic pipes from lower hitch cm	110
Best results at RPM	1000
PTO shaft safety	adjustable friction clutch
Drive system	direct drive
Tractor engine power recommended hp / kw	60-150 / 45-110
Required engine power for max. performance hp	70 - 90
Internal hydraulic system Tank L Flow capacity at 540 RPM L/min Flow capacity at 1000 RPM L/min Standard / maximum pressure psi	YES 9 6,6 12,2 2900 / 3625
Recommended hydraulic oil	HLP-32 or HLP-46
Rotor diameter cm	94
Rotor thickness without fans mm	30
Rotor weight kg	197
Number of knives	4 + 1 + 1
Rotor knife / counter knives cm	32x10x1,7 / 27x9,5x0,9 / 14,5x6x0,9
Adjustment area counter knife mm	0 - 10
Infeed chute largest size cm	112 x 74
Infeed chute smallest size cm	28 x 23,5
Recommended wood diameter cm	< 23
Distance from lower edge infeed chute to ground cm	60
Distance between infeed roller and rotor knives cm	10
Size of wood chips cm	1 - 5 (depending on wood and settings)
Wood feeding system	hydraulical fore-/backward
Output chute height max. cm	240 / optional extension by 50
Output chute adjustment	0 - 230°
Material strength rotor housing mm	8 - 10
Painting	powder coating
Transport box (LxWxH) cm	125x115x118
